Mespack H-220 FE Doypack Stand Up Pouch Filler For Liquids

Originally from a high-profile cosmetics manufacturer in Europe.

Comes with Spout Cap Unscrambler and Elevator.

Working Description

Form-fill-seal doypack pouch filler for medium output.

Suitable for pouches up to 220mm wide with Corner Spout.

Will work for standard stand up pouch/doypack as well as Corner Spout (which can be activated/disabled in control panel).

Taken out of production in November 2024 – videos were taken when it was in production.

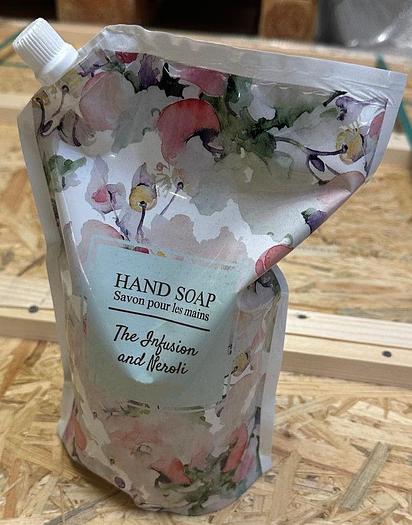

Very well-maintained example - previously used in Cosmetics for soap product and up to 1,000 ml fill.

• independent electrical cabinet
• unwind system integrated with the machine to save floor space

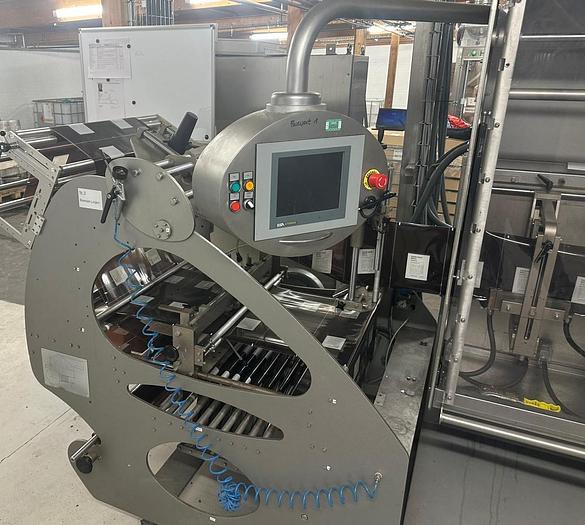

• adjustable arm mounted PLC control panel

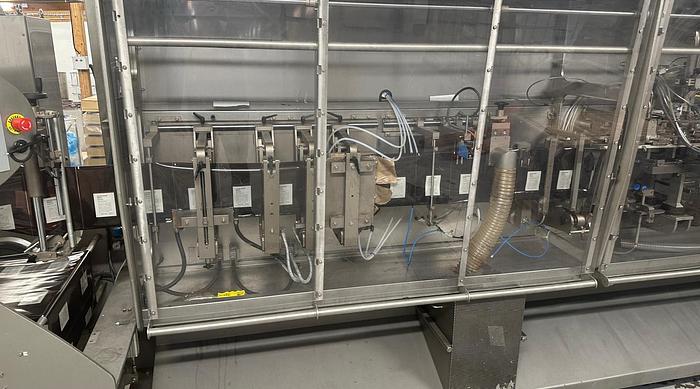

• 3 different filling stations
• cam driven walking beam
• static pouch stretching prior to sealing
• pouch reject station

Technical Information

Built for liquids; capacity: up 70 per minute (depending on product type / viscosity, fill range and type of closure).

Fill volume: 200 ml – 2000 ml: product hopper: 125 litres: filling temperature: max. 85°C;

Suitable for following pouch dimensions:

Min. pouch size: (Width x Height x Depth): 80mm x 100mm x 40mm

Max. pouch size: (Width x Height x Depth): 220mm x 300mm x 120mm
