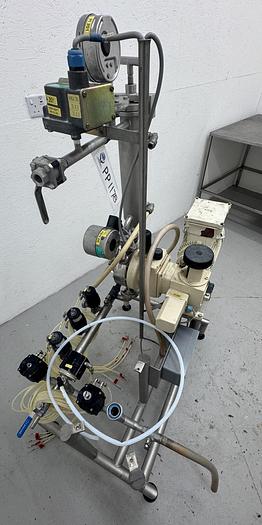

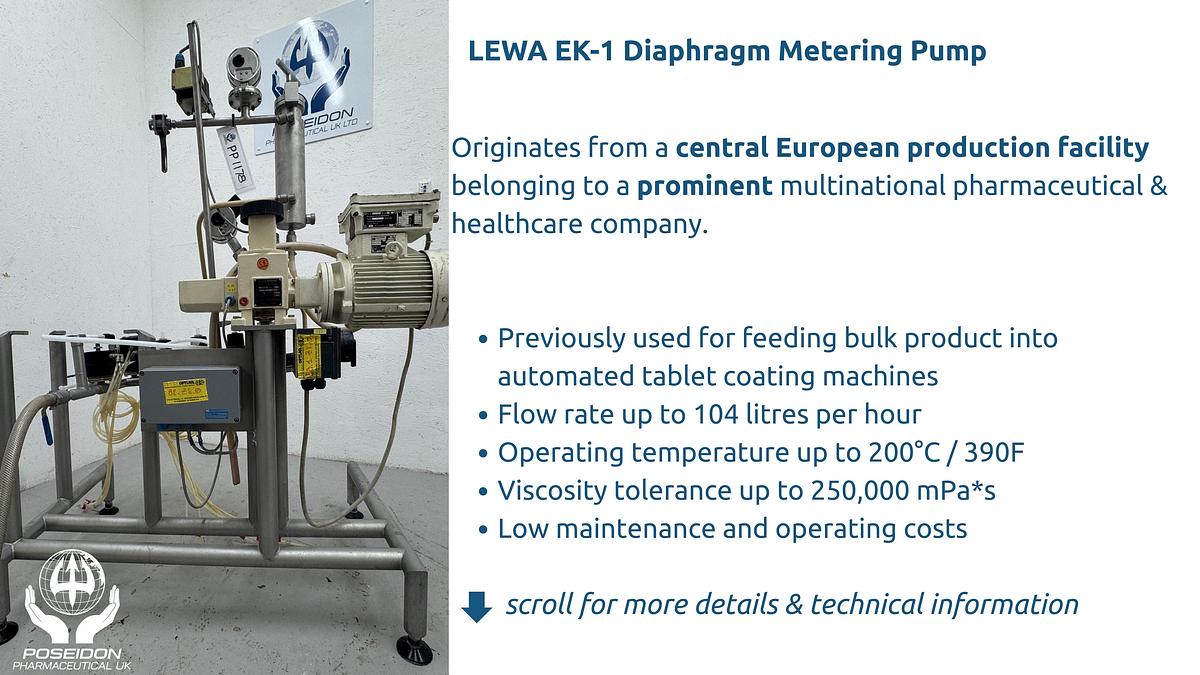

LEWA EK-1 Diaphragm Metering Pump EK1 (No1)

The machine originates from a prominent pharmaceutical production site in Europe and it is in excellent overall condition - well looked after and serviced on regular basis.

2x available units

Technical Information:

Fitted to steel frame construction

Stroke length: max. 15 mm

Stroke frequency: 140 per min

Motor: 1.1 kW; 220/380V

Flow Rate min.:10 l/h

Flow Rate max.: 104 l/h

Operating Temperature: from -80 °C to 200°C

Viscosity: from 0,1 to 250,000 mPa*s

Piston Diameter: 28mm

Machine Size: L: 1300mm x W: 700mm x H: 1800mm

Weight: 50kg
