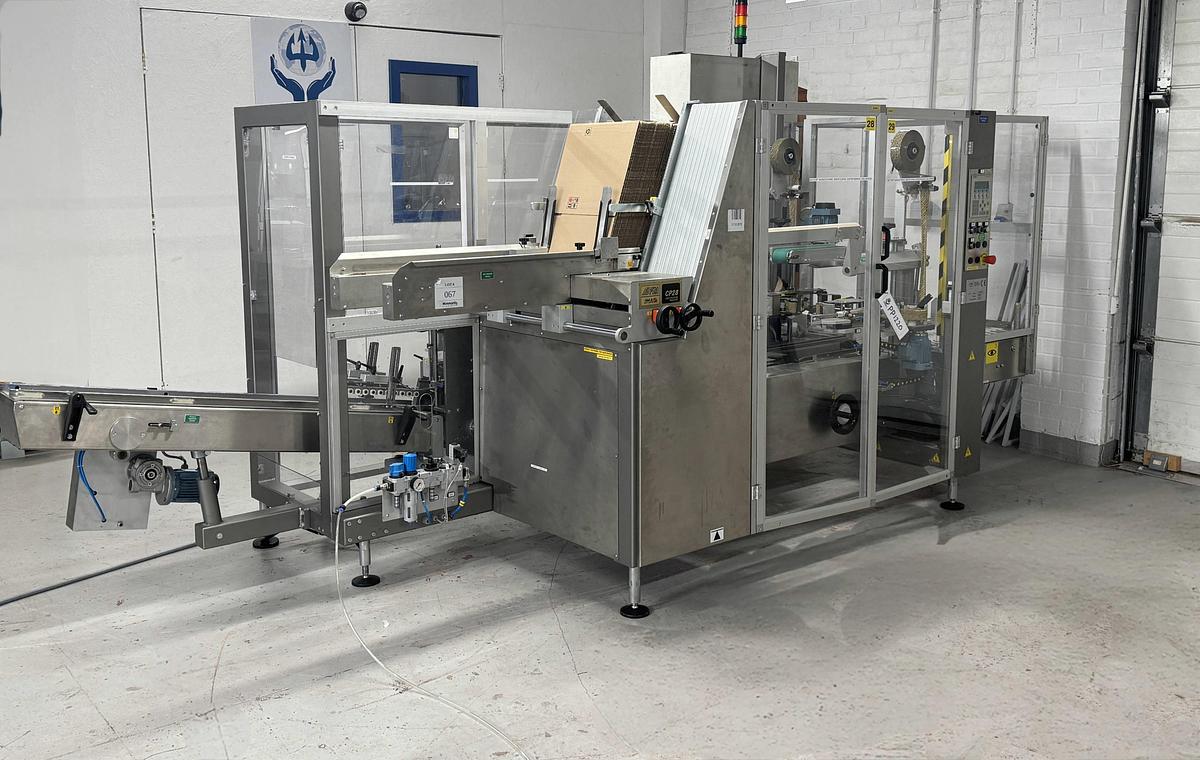

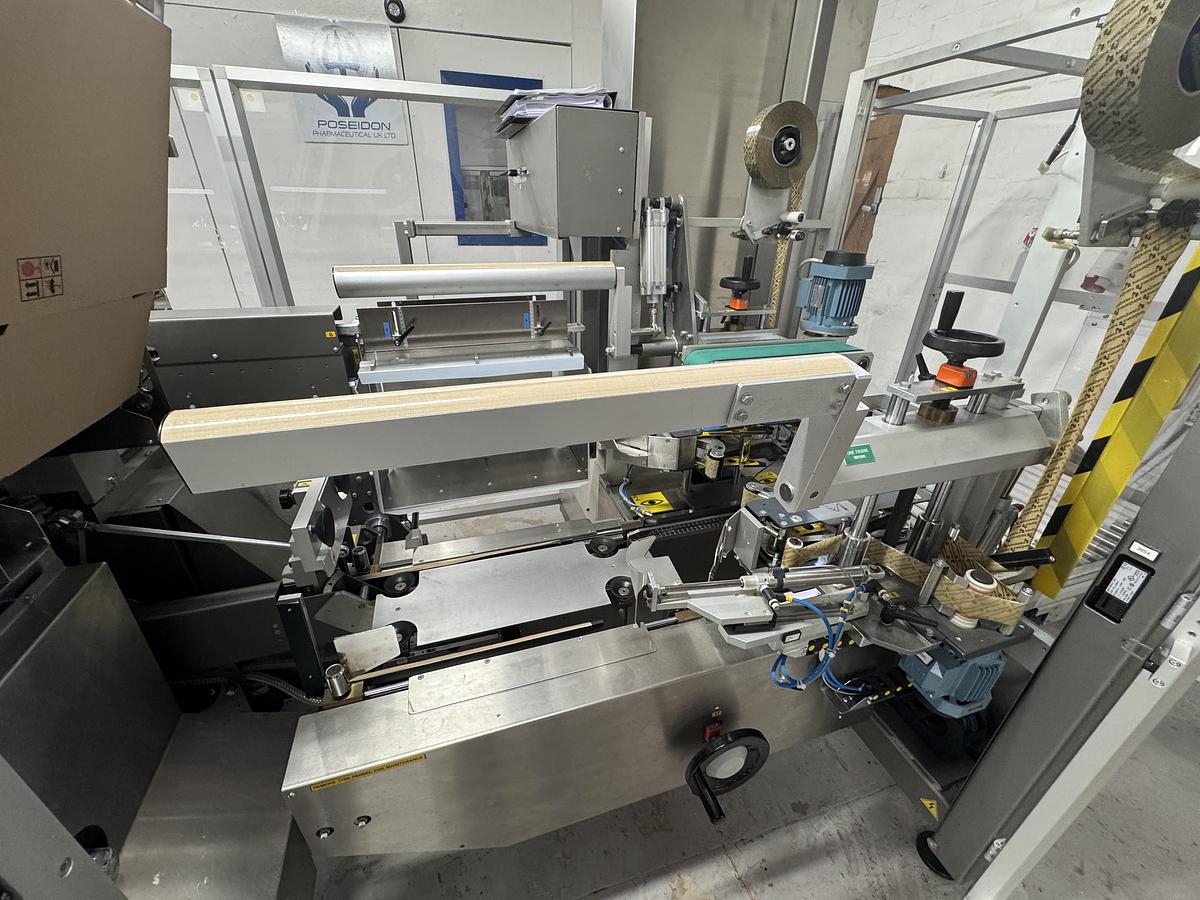

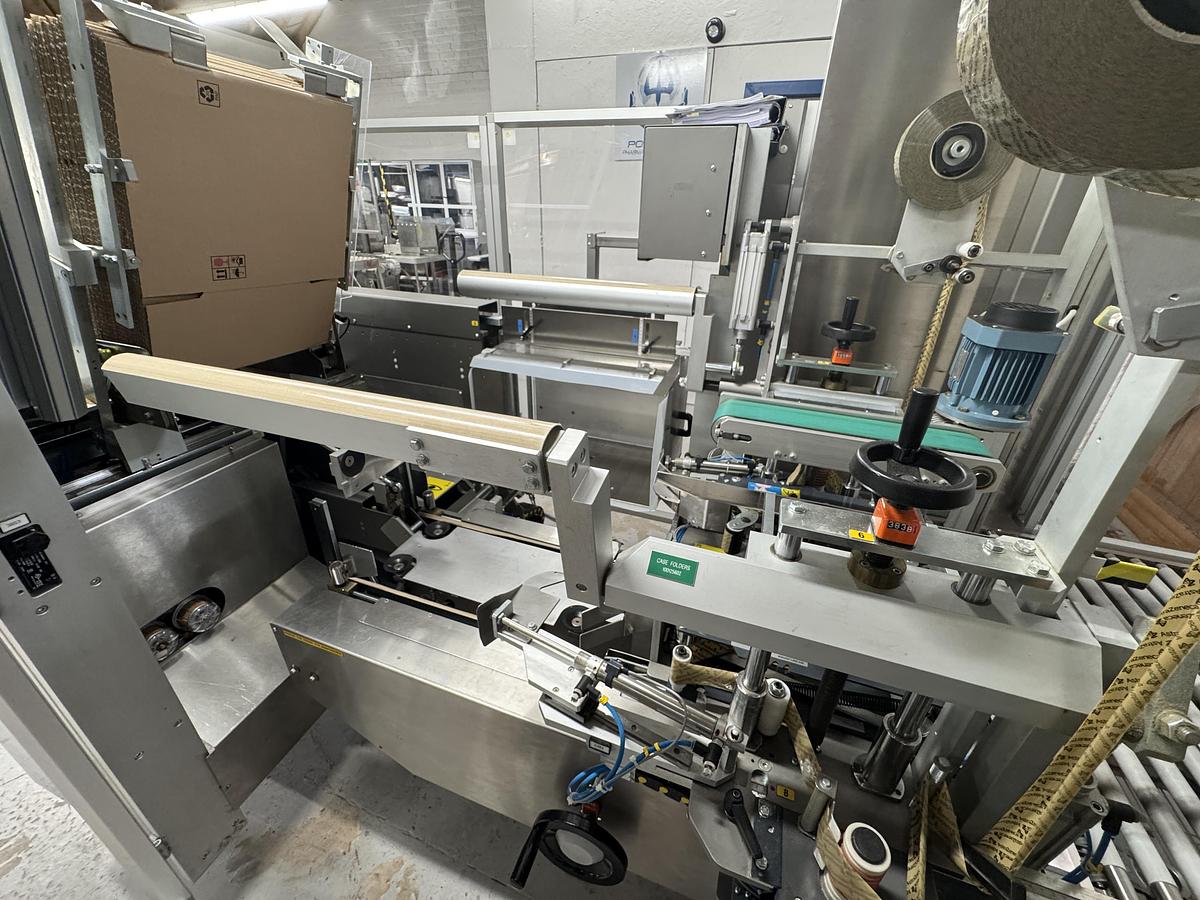

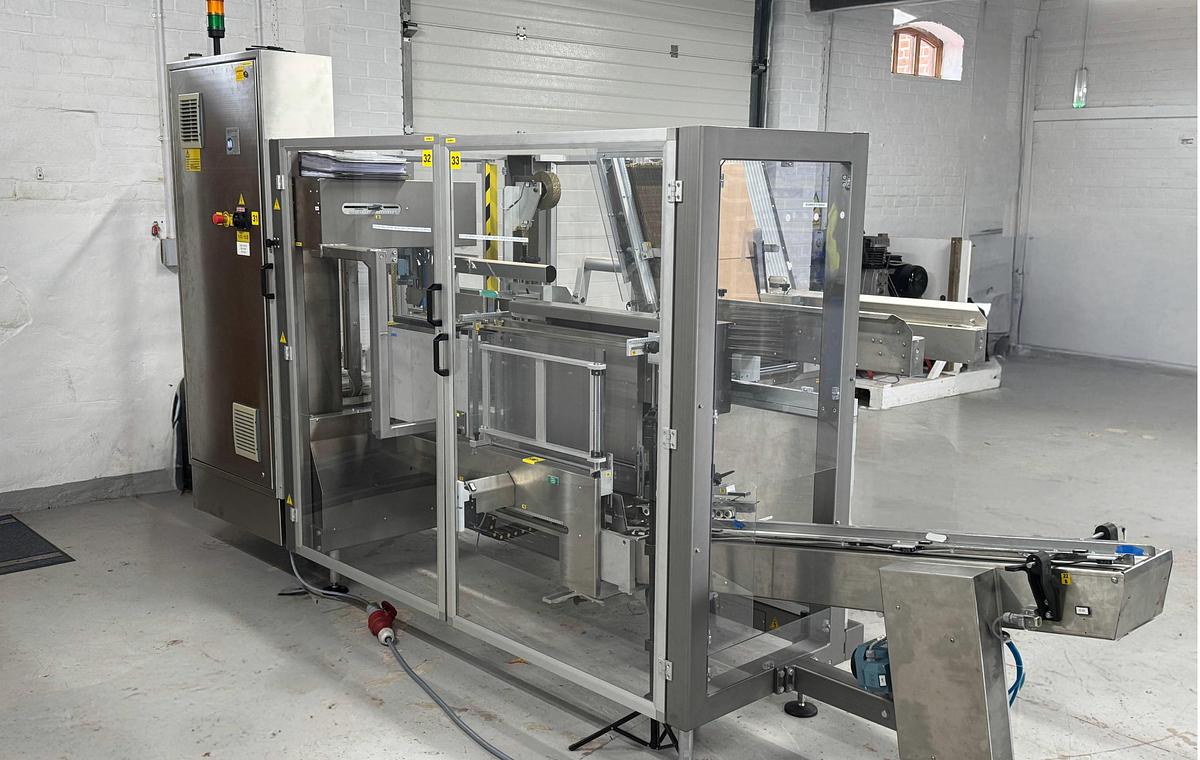

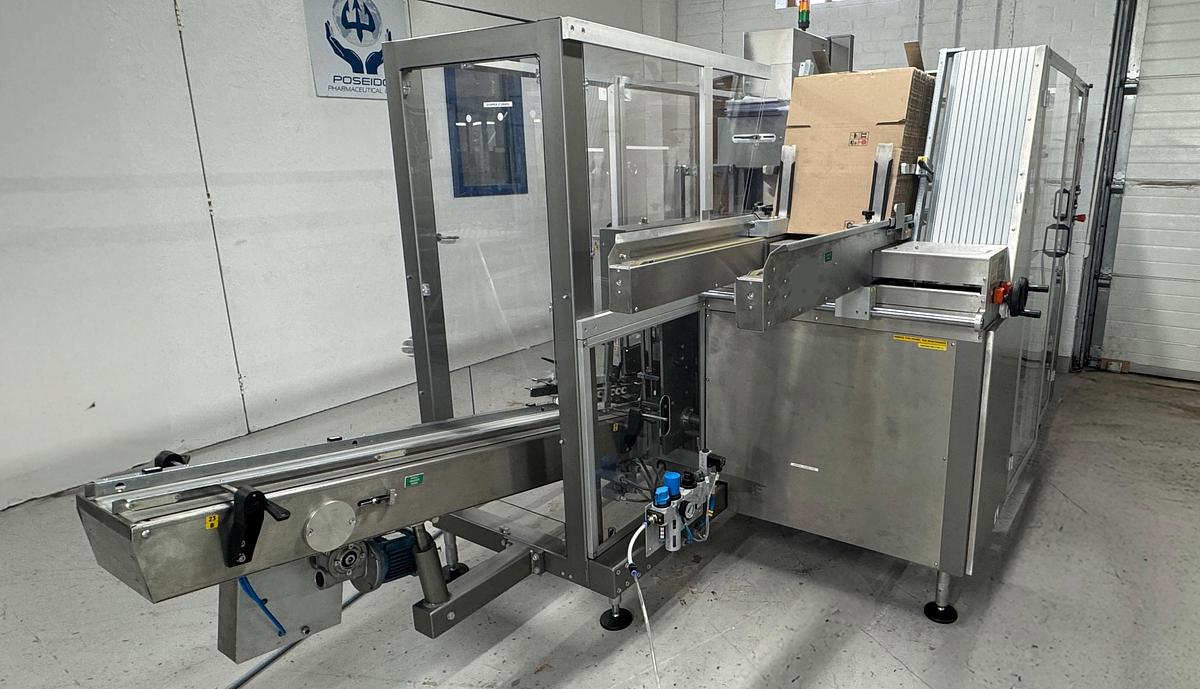

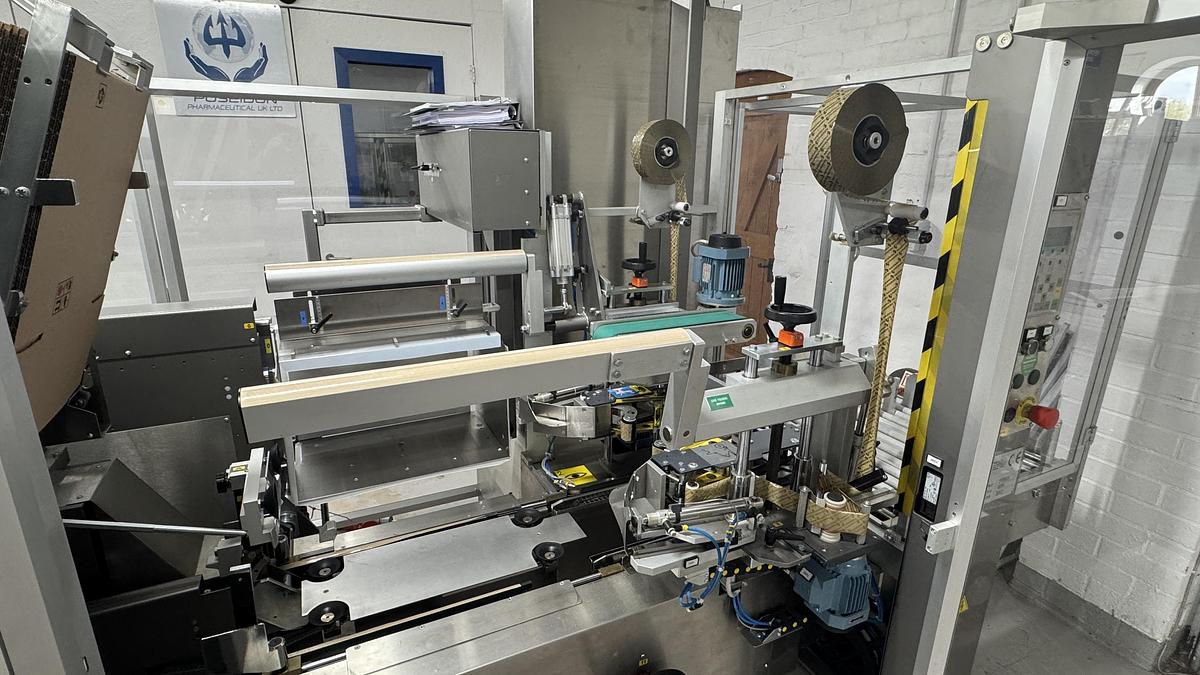

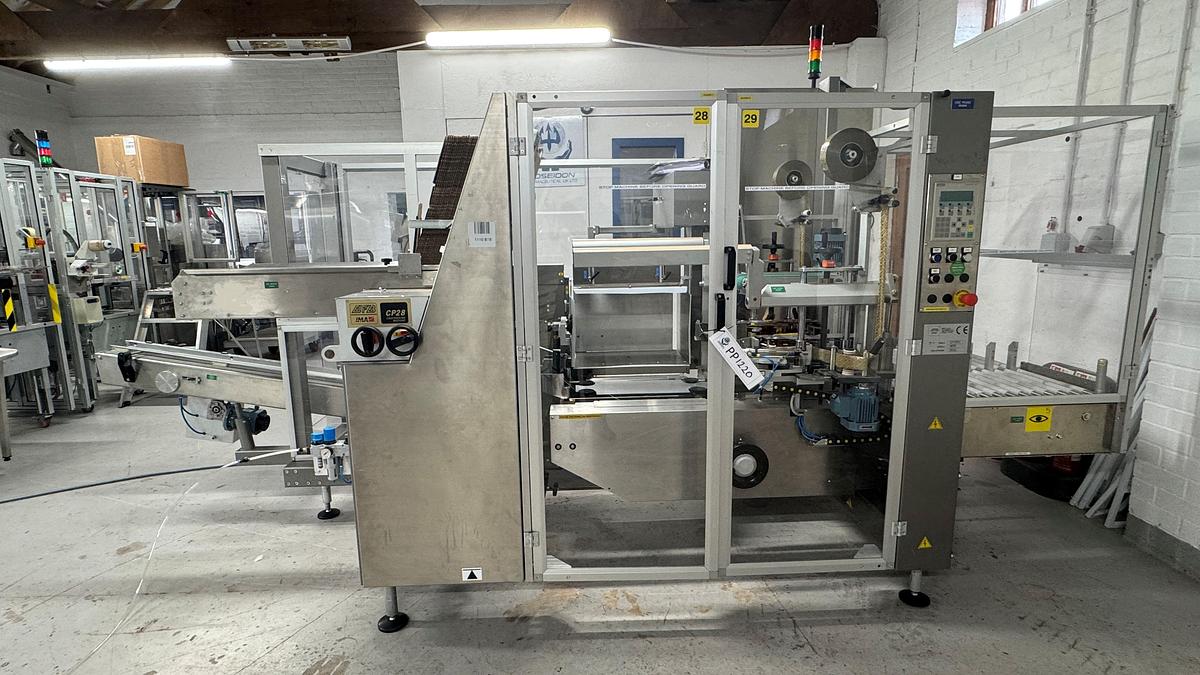

IMA BFB CP-28 Automatic Case Packer

Price

Contact us for price

Location

England, United Kingdom

Description

Machine originates from a prominent Pharmaceutical Factory in Europe, and it is in overall excellent condition – little use, serviced and well looked after.


Automatic case packer


Working Description:


Automatic case packer equipped with pre-stacking unit allowing to accommodate high incoming speeds of the individual product / boxes to be packed into cases and built with adjustable, horizontal flat case magazine.


This CP-28 BA example is additionally fitted with following:


·        Infeed belt conveyor adjustable 90mm to 245mm

·        Automatic product pusher into case

·        Adjustable case opening and former station

·        Case closure by tape with 2 taping heads

·        Control panel with Siemens S7 PLC and Siemens HMI



Technical information:


Output up to 8 cases per minute within following min / max case sizes:

Length: 220mm to 600mm

Width: 120mm to 400mm

Height: 120mm to 350mm


This machine complies with CE standards (EC standards’ compliant)

Installed power: 2.8 kW

Compressed air: 6/8 Bar


Machine’s size:

L: 5000mm x W: 1850mm x H: 1900 mm

Weight: 750kg




Tags:

used case packer

case packer

case packer uk

small case packer

case pharma packs

used packer

Specifications

ManufacturerIMA
ModelBFB CP28
Year2002
ConditionUsed
Stock NumberPP1220
