Giusti 500 Litre S/S Fully Reconditioned Used Jacketed Mixer with Anchor Paddle Blade and bottom fitted High Shear Mixer

Included:

• Giusti 500 Litre S/S Fully Reconditioned Used Jacketed Mixer
• Fully Reconditioned Control Panel
• all in perfect working condition

Rare to the used machinery marketplace, the Giusti 500 Litre S/S Fully Reconditioned Jacketed Mixer originates from a high-profile Pharmaceutical Plant in Europe.

Working Description

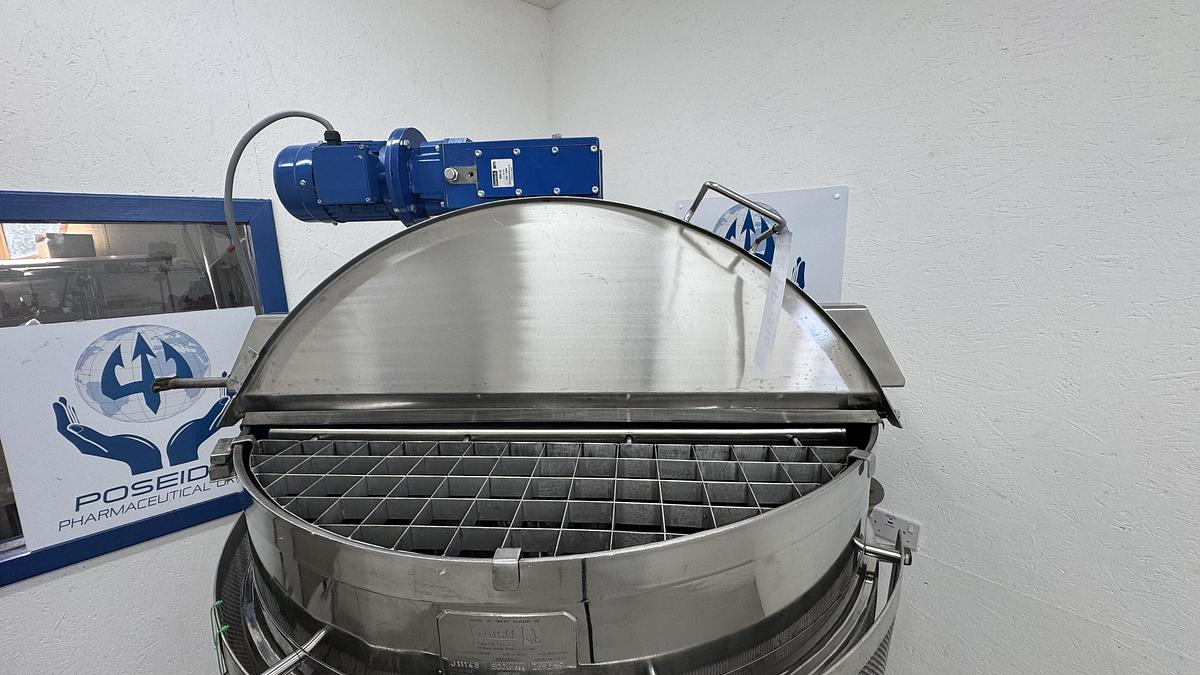

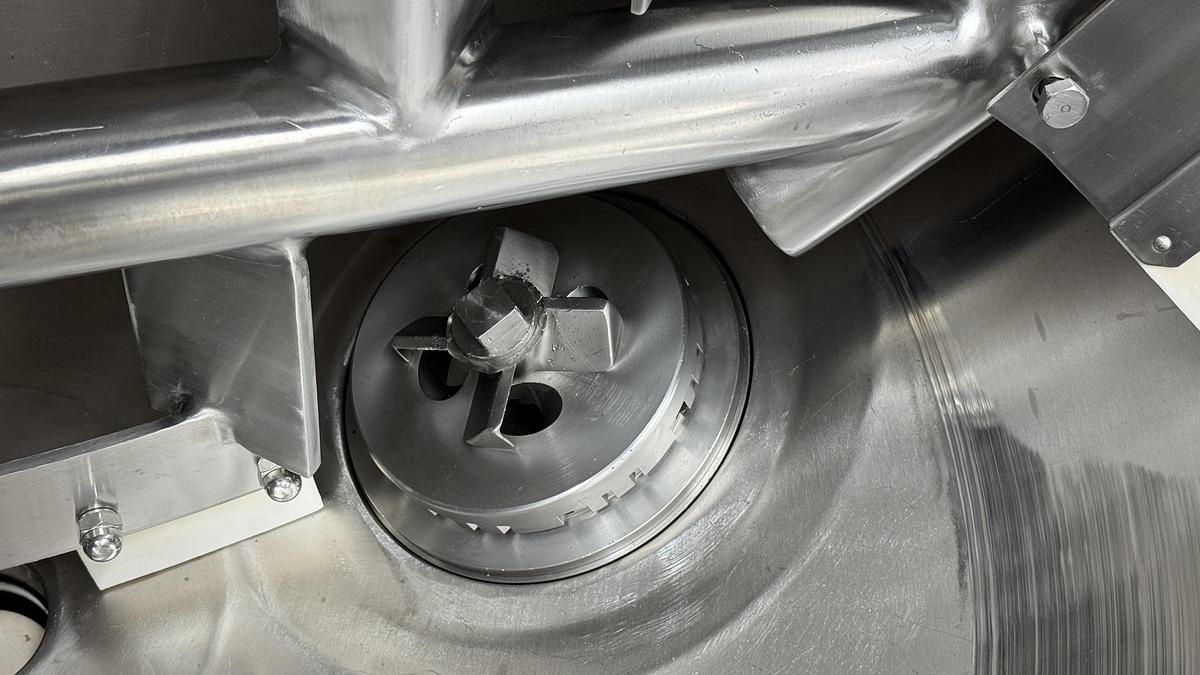

Fully reconditioned Giusti 500 litre stainless steel anchor paddle mixer and built into jacketed hemispherical vessel with powerful 2-speed bottom mounted high shear mixer.

The unit has seen a very little use, and it is in overall excellent condition.

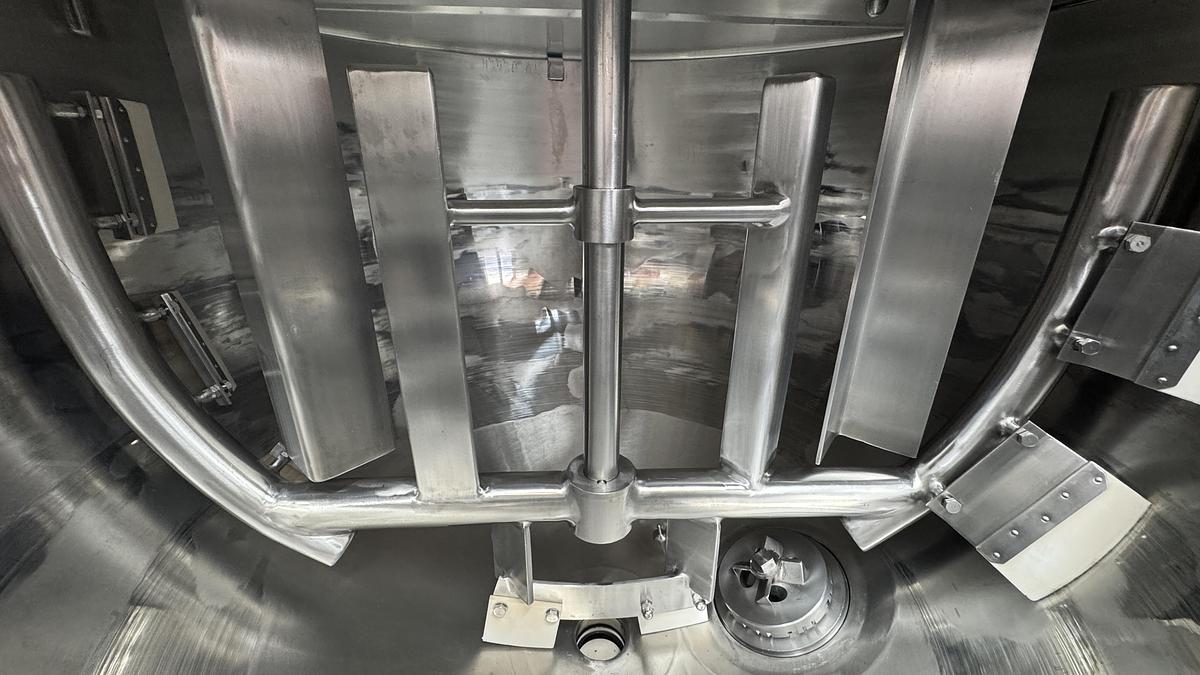

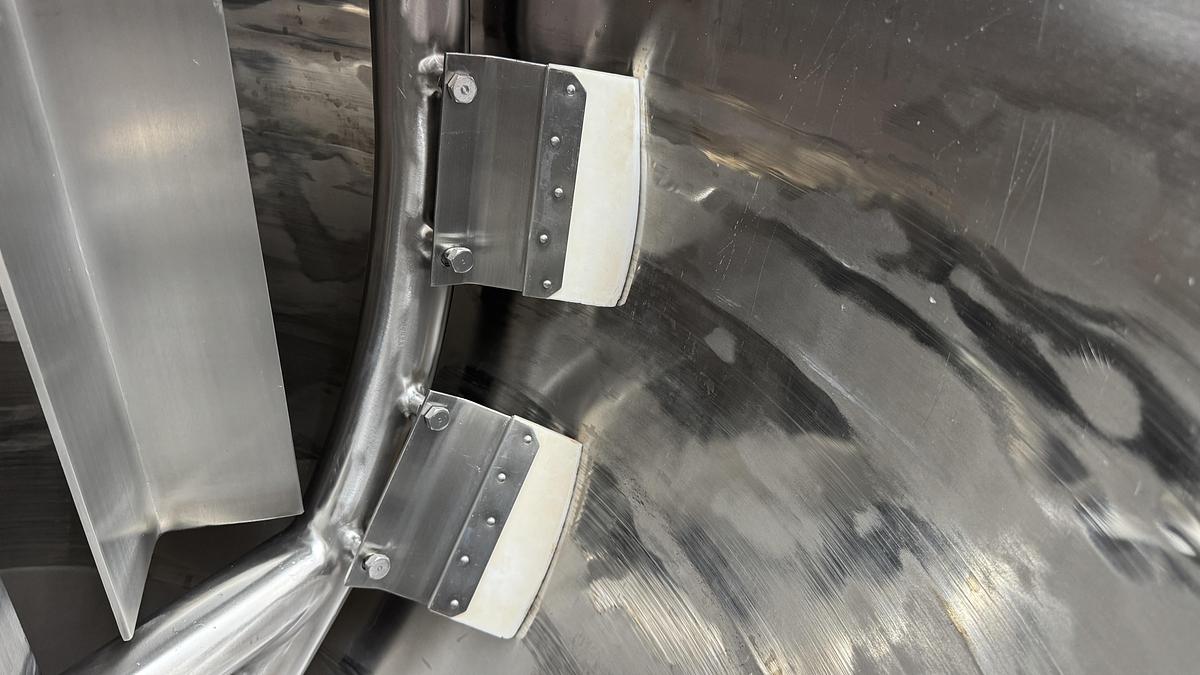

It is a fully stainless-steel mixer and comes with newly fitted, high efficiency top mounted mixer drive and the anchor paddle features PTFE scrapers for preventing the build-up of a stagnant boundary layer and to keep the heating surfaces free.

Additional wave breakers are factory installed in the vessel for a “contra-rotating” effect and to improve and to intensify mixing of the product.

It can handle highly viscous liquids such as ointments, syrups, gels, creams and lotions, honey, glue / adhesives and others.

Allowing for uniform consistency, maintaining sensitive formulations, precise, sanitary blending and preventing stratification, this Giusti jacketed mixer is suitable for following industries:

·        Food and beverage

·        Cosmetics and personal care

·        Pharmaceuticals

·        Paints and coatings

·        Chemical processing

Technical Information:

Top Mounted Mixer Drive-

Top Speed: 1735 RPM

Water Fill Jacket-

Test Pressure: 6 bar

Working Pressure: 4 bar

Bottom Mixer Speed-

slow: constant speed

fast: adjustable up to homogenising level of 2,880 RPM

Recondition Process

Mechanical Recondition

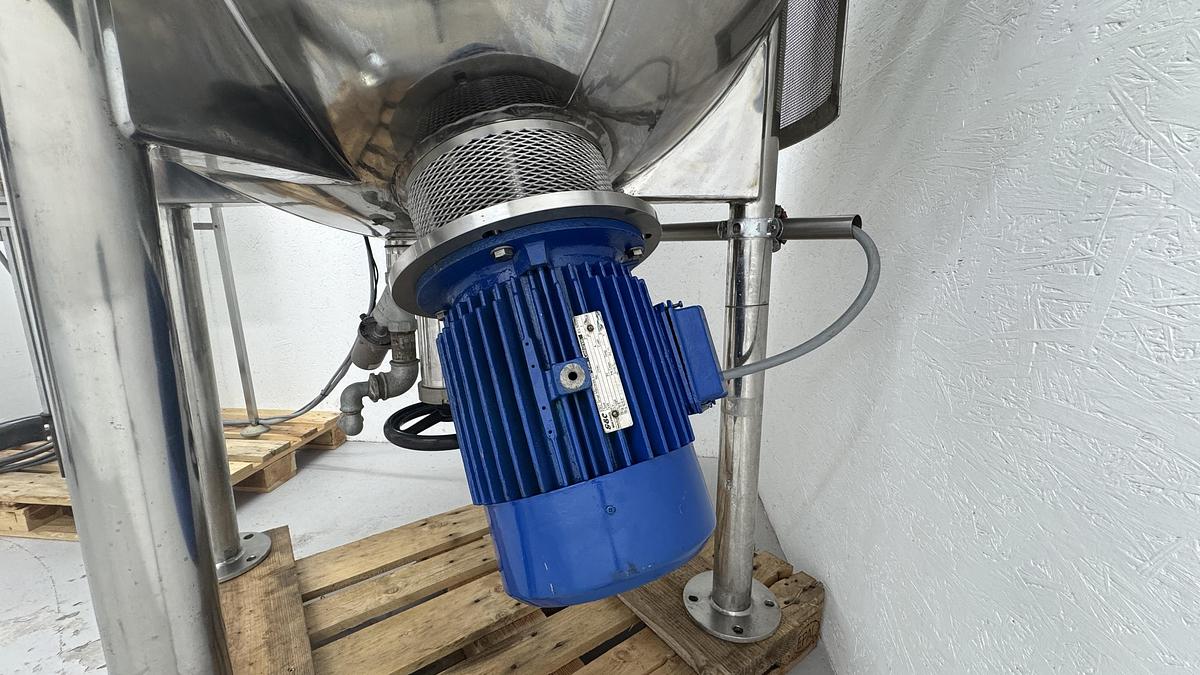

·        Refurbished 2 - speed main motor / bottom fitted high shear mixer – complete strip and clean, check windings, replace bearings, respray, reassemble and test

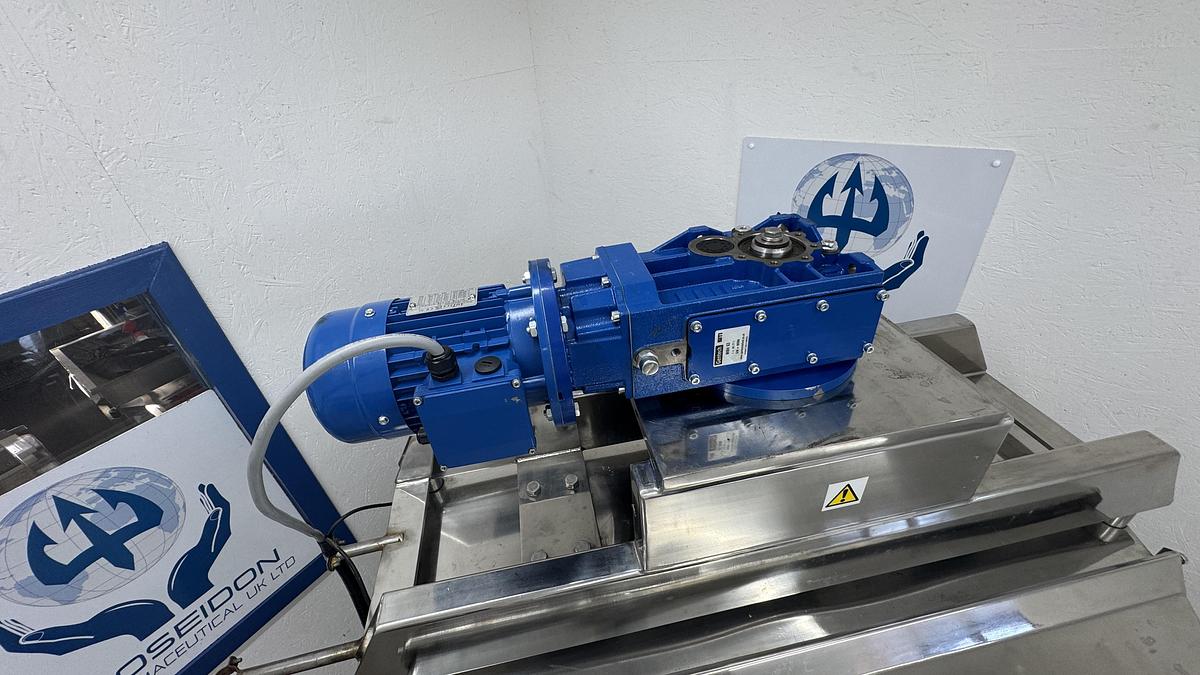

·        New gearbox – SITI Bevel Helicoil Gearbox 40.77:1 Model MBH63

·        New motor for gear box – Amtec H80B/4B35 .75kw

Electrical Recondition

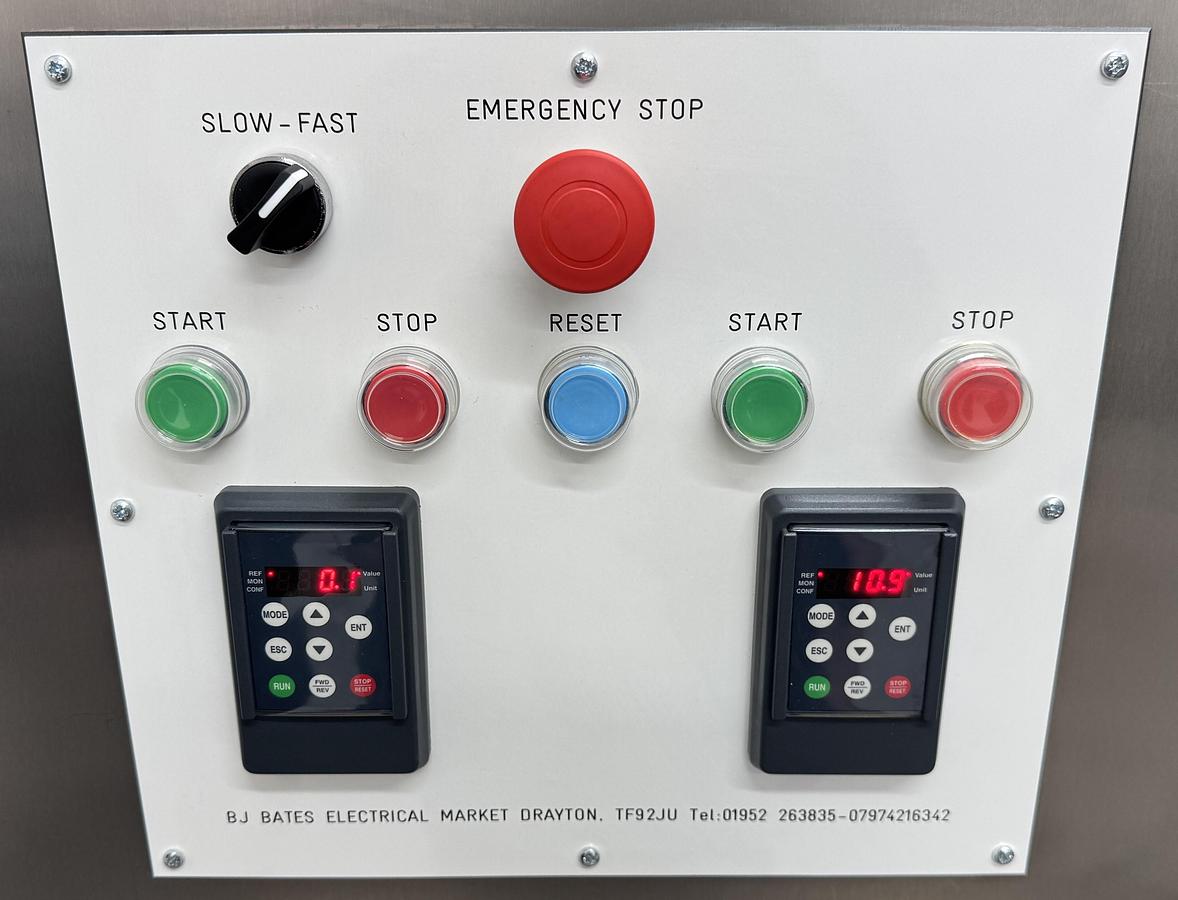

·        New electrical panel, including invertors for top (Schneider Altivar ATV320) and bottom (Schneider Altivar ATV320 1.5kw) motors

·        New wiring
