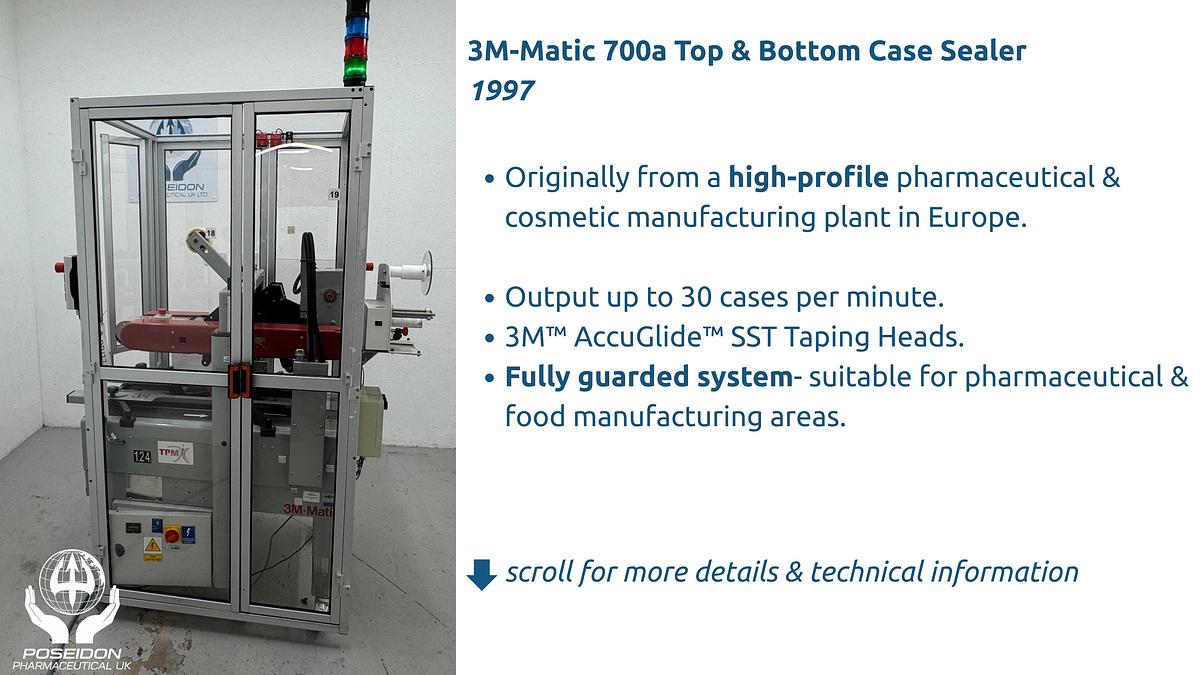

3M Matic Adjustable Case Sealer - Fully Guarded (1997)

The machine originates from a high-profile pharmaceutical & cosmetic manufacturing plant (part of a large Pharma group that operates 18 industrial sites and 3 development centres located across Europe).

Year: 1997

Excellent condition with little use.

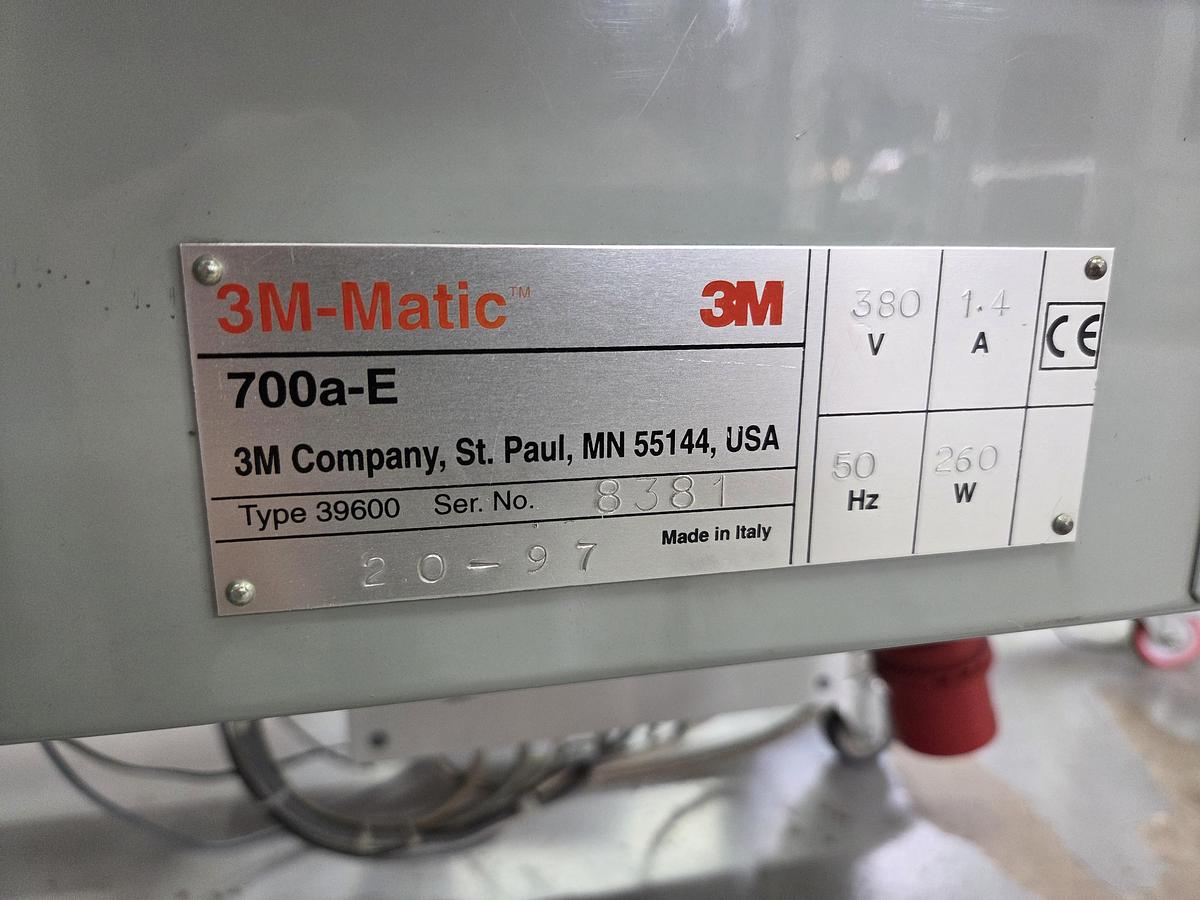

3M-Matic™ Adjustable Case Sealer 700a-s is as a used case sealer, designed to seal the top and bottom centre seams of up to 30 cartons per minute.

Working Description:

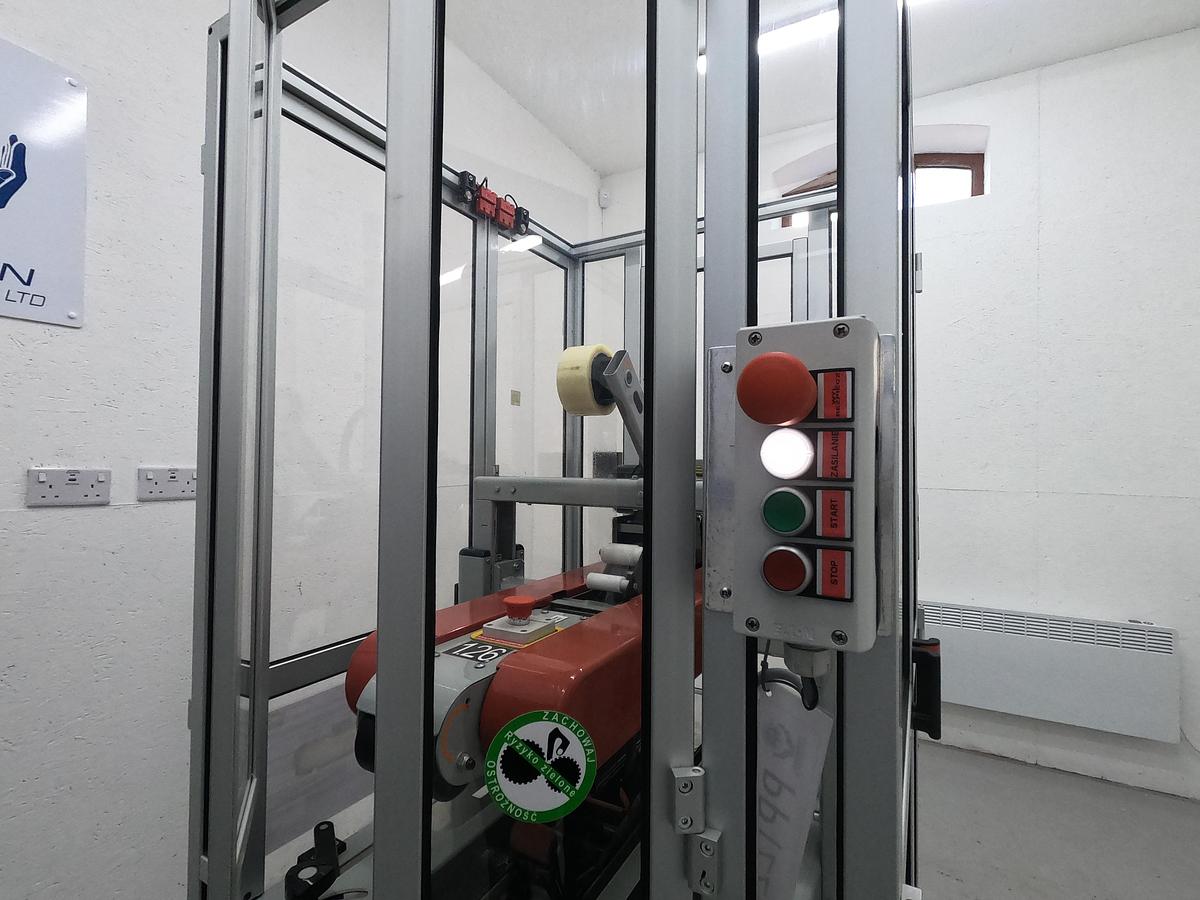

Fully guarded construction-suitable for demanding Pharmaceutical and Food grade manufacturing areas

Stainless steel construction for use in corrosive and high moisture environments

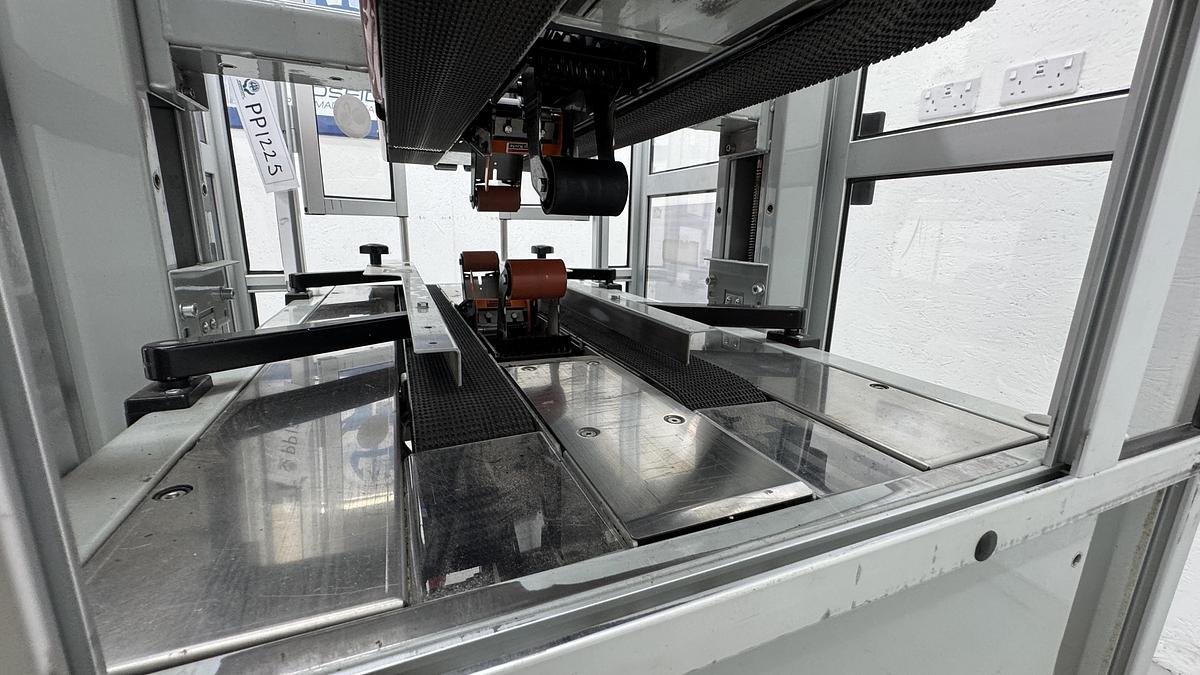

Equipped with 3M™ AccuGlide™ SST Taping Heads designed to apply a “C” clip of Scotch® pressure-sensitive type film box sealing tape to the top and bottom centre seam of regular slotted containers.

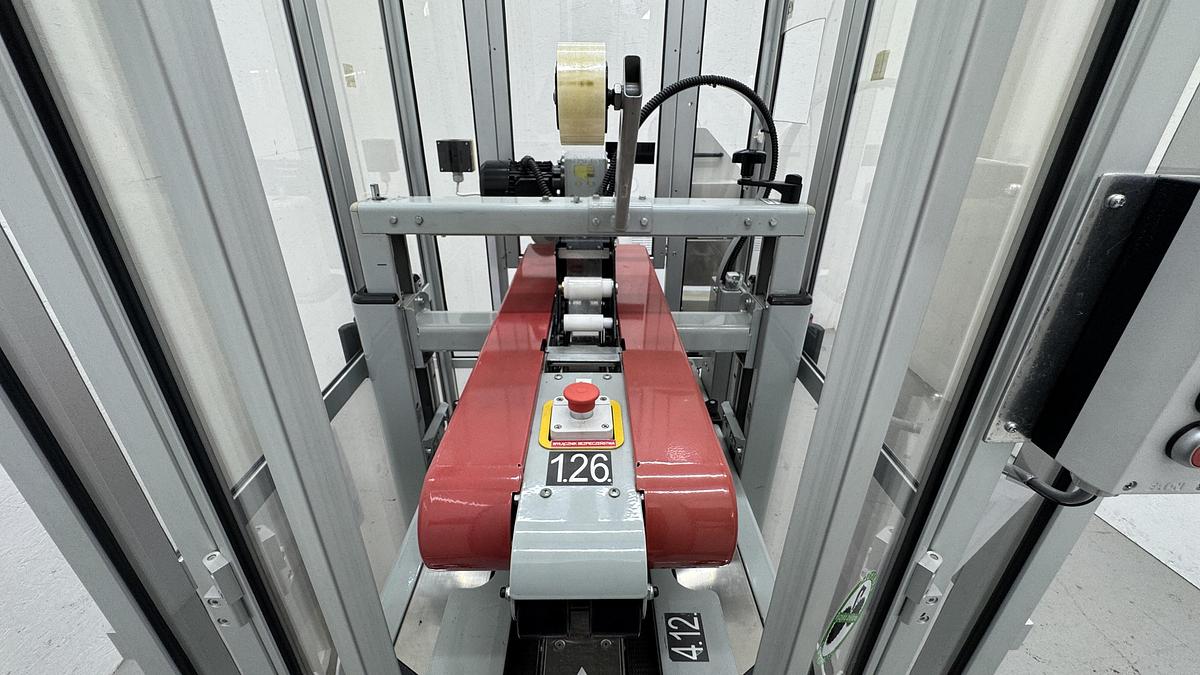

Adjustable top and bottom belt drive system for reliable conveyance of heavier or tall/light boxes.

Compression rollers squeeze flaps together to create a tight centre seam

Gearmotors provide power to the 4 drive belts, and adjustable side guides position and align your boxes for quick and easy throughput.

Technical information:

Output up to 30 cases per minute

Box Weight (filled): 2.3 kg to 29.5 kg.

Contents must support flaps.

Box Size:

Length:  150mm to unlimited

Width: 150mm to 550mm

Height: 120mm to 620mm

Cartons narrower than 250 mm in width may require more frequent belt replacement.

Tape Width - 36mm [1 1/2 inch] minimum to 48mm [2 inch] maximum

Tape Roll Diameter - up to 405mm [16 inch] maximum on a 76mm [3 inch] diameter core (Accommodates all system roll lengths of Scotch® film tapes.)

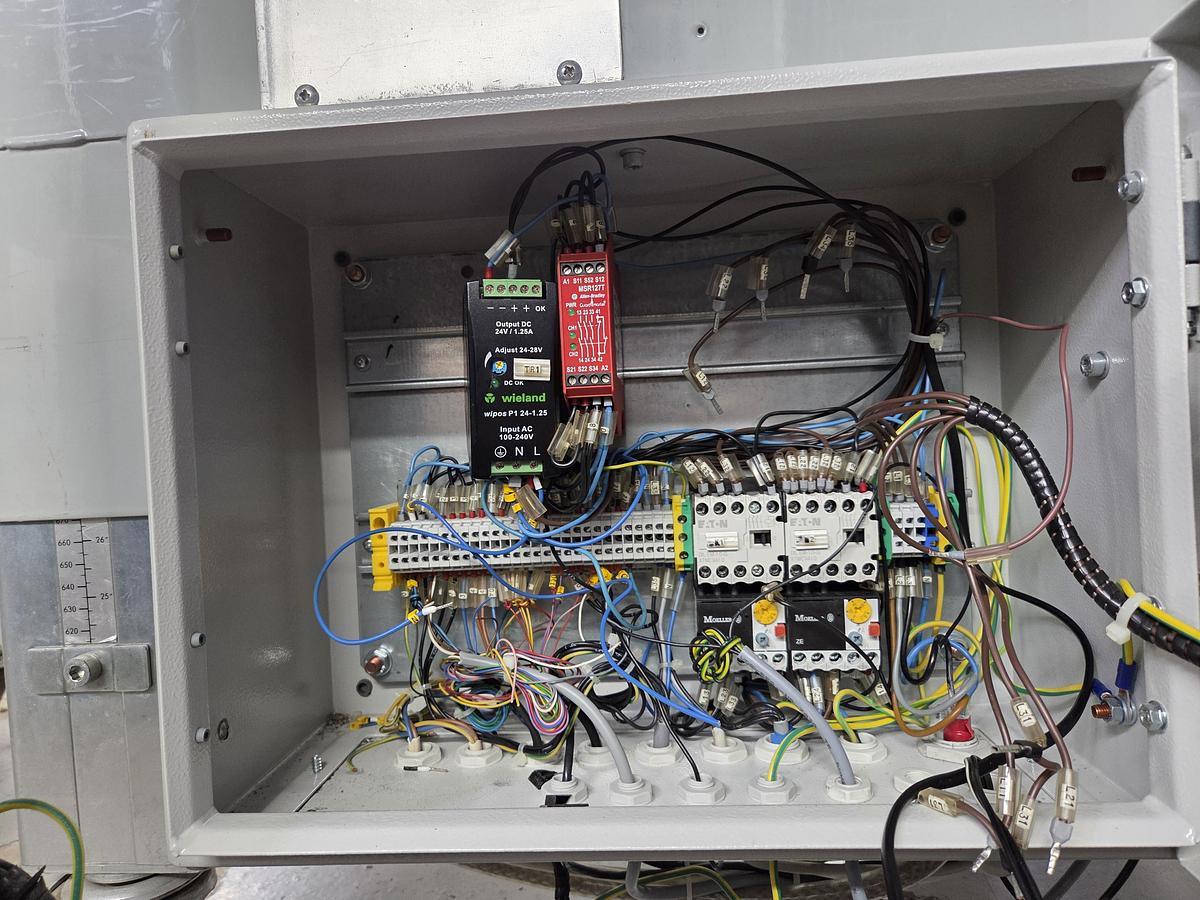

Power Requirements - Electrical – 120 VAC, 60 Hz, 3.25 A Pneumatic – 6.5 bar gauge pressure [95 PSIG], 2.5 SCFM 75 litre /minute @ 21° C., 1.01 bar maximum at maximum cycle rate. A pressure regulator/fi litre is included.
