King TB-4 Automatic Tablet/Capsule Counting & Filling Line

King TB-4 Automatic Tablet/Capsule Counting & Filling Line

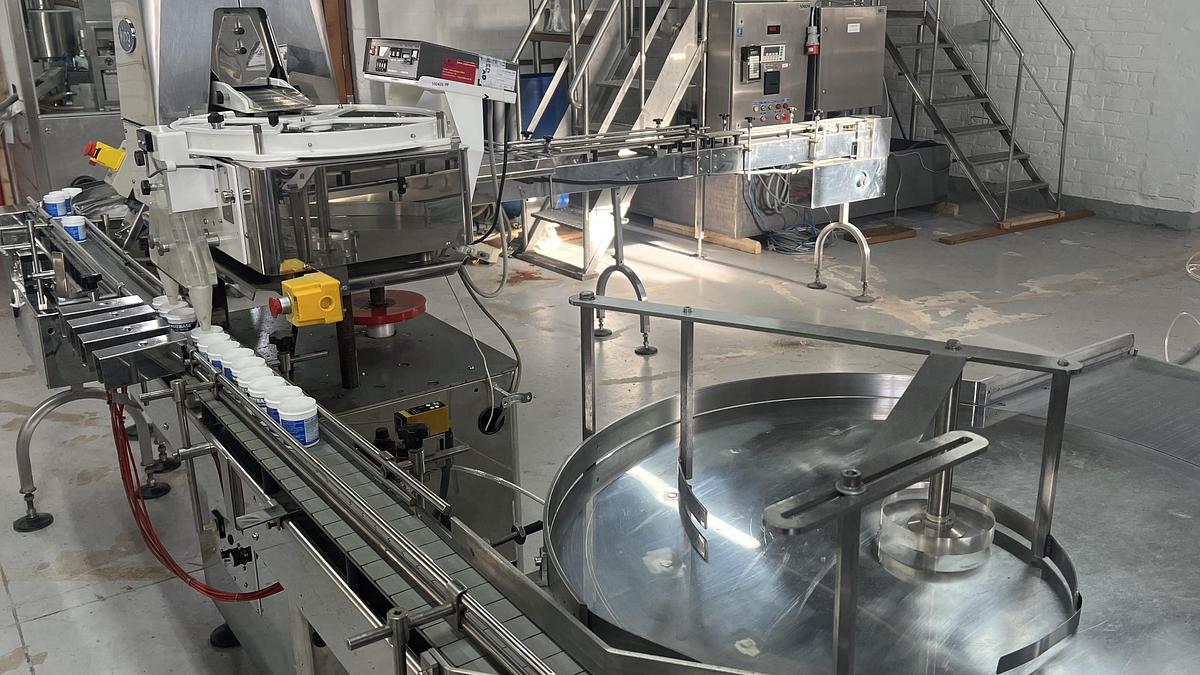

The line originates from a prominent Pharmaceutical production site in Europe.

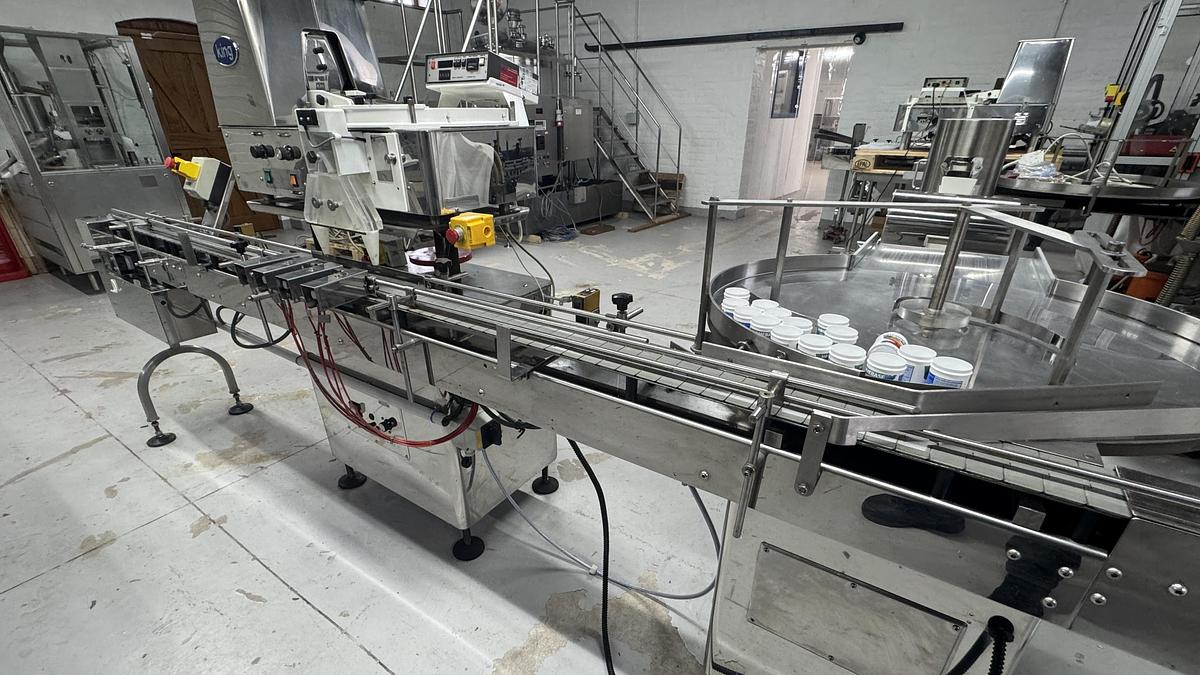

It consists of:

·         King US3 stainless steel rotary sorting and feeding table, DIA 920mm - for empty containers

·         Automated 2-head King TB4 counter tablet and capsule filler with Gating System for 2 Filling Stations.

for more information please get in contact

Working Description

This compact and space-efficient medium output Pharma grade tablet and capsule line is fully integrated and built by C.E. King UK to work as one unit with Stainless Steel pharma grade construction throughout.

Rated at up to 35 containers per minute, very well looked after, excellent overall condition and with low hours.

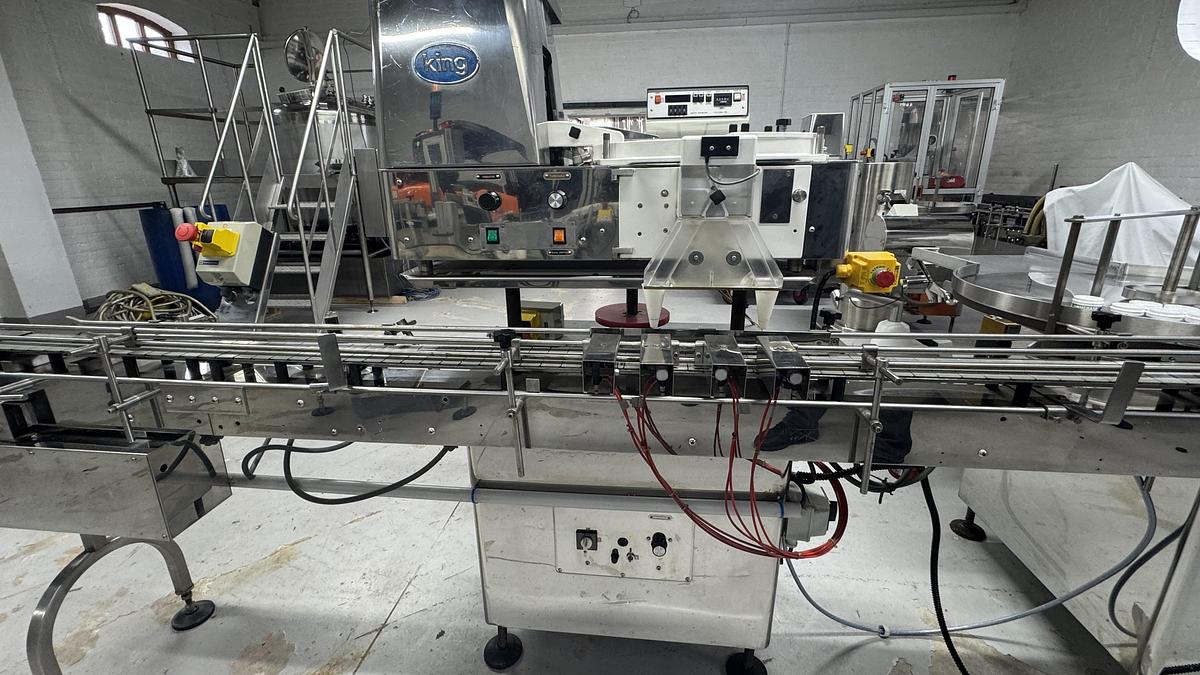

Integrated to the main Stainless-Steel height-adjustable 3250mm long conveyor, equipped with variable-speed drive, fitted with 100mm wide slat conveyor and width-changeable guide rails.

This automated version of King TB-4 offers an extremely versatile and precise counting method for various types of coated and uncoated tablets, capsules, hard and soft gelatine capsules.

The machine is highly adaptable, quick to install and clean. Comes fitted with hopper and it’s insert in Stainless-Steel.

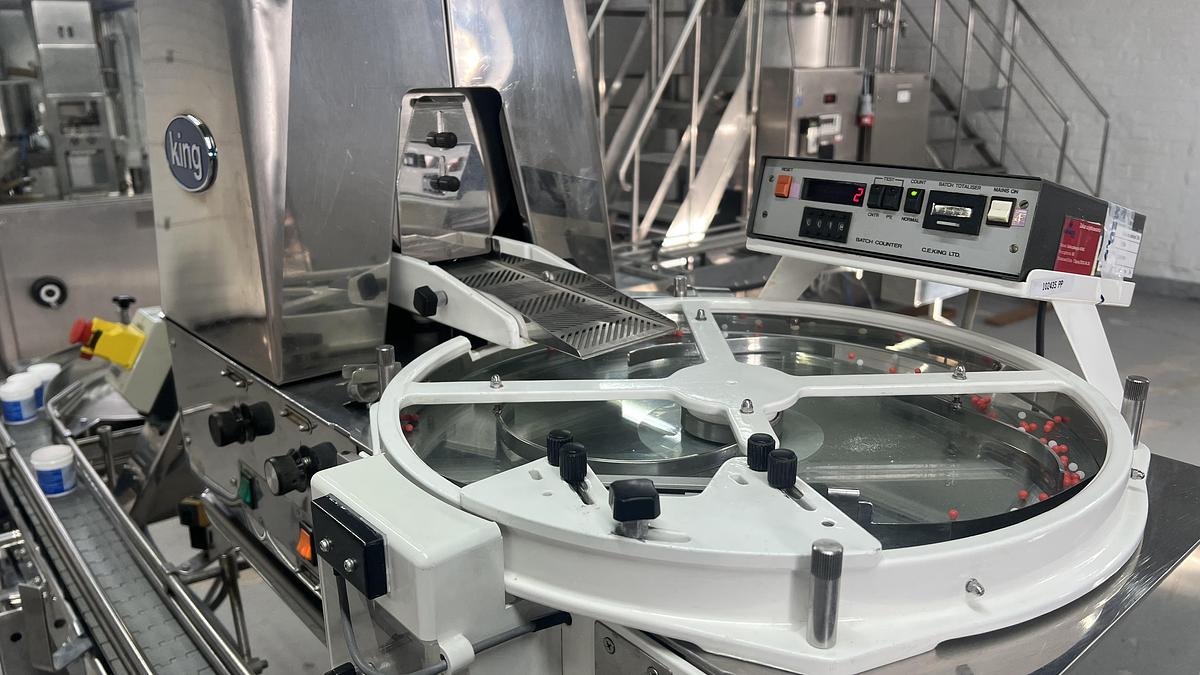

The TB4 can be regarded as two units: a feeding unit consisting of a hopper, a vibrating chute with a rotating glass disk beneath its outlet, and a counting unit composed of a photocell and light source that activates a counter.

The hopper contains bulk product (tablets, capsules, others) with an adjustable outlet plate to allow the passage of tablets - capsules of various sizes.

The product moves along the chute by vibration and falls onto a rotating glass plate driven by a geared motor.

This rotating plate transports the tablets clockwise, causing the products to deviate outward in a single line through guides mounted close to the glass, until they reach the arrangement of the pickup and outlet plate at the front of the machine.

At the outlet, a photocell and a light source assembly are mounted so that a single row of tablets falls individually, interrupting the falling light beam, thereby registering them on the electronic counter.

The tablets then fall past a flap mechanism that tips over after a preset count is reached, directing the tablets into another container. This configuration allows for the filling of separate containers. At the final outlet position, two plastic outlet funnels are mounted to channel the product into the containers.

Technical Information

Output via 2-head filling station:

Tablet dimensions mm/count per minute: 5/2600, 9/1800, 10/1600, 15/1000.

Capsule size/count per minute: 1/800, 2/900, 3/1000, 4/1100, 5/1200.

Product dimensions: 3-25 mm.

·         King Small rotary outfeed table – DIA: 360mm, motor and at the 90 degrees bent to the outfeed accumulation table.

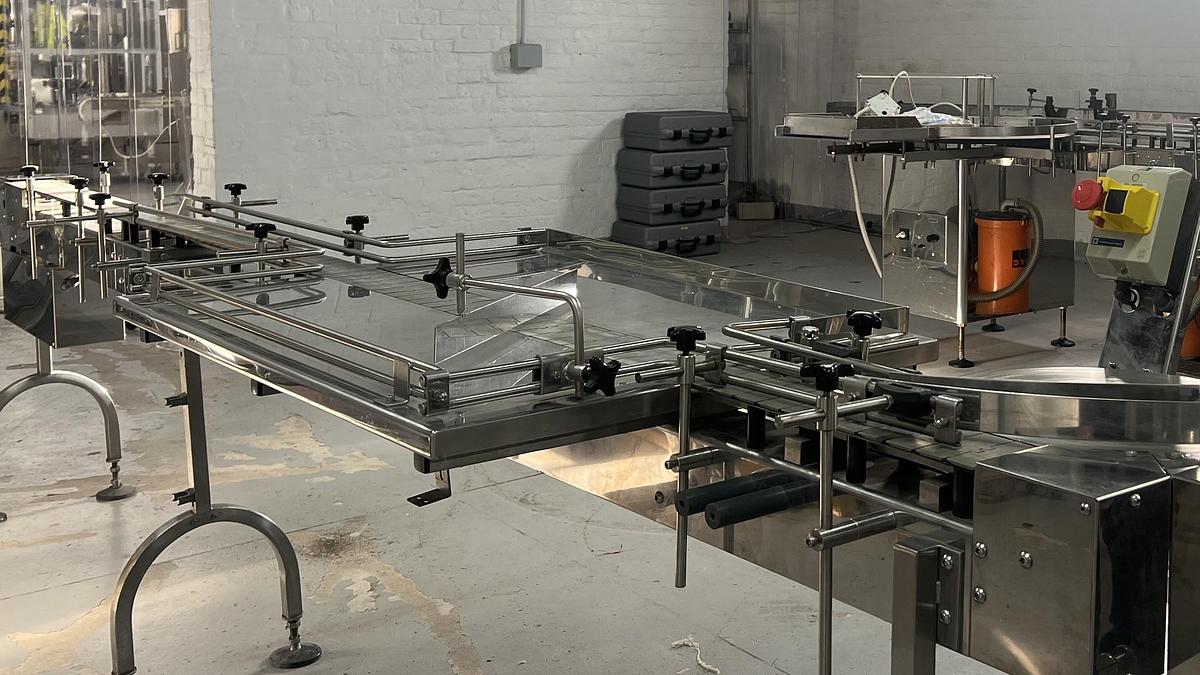

·         King square shaped outfeed accumulation table – top size: 1000mm x 750mm for filled containers.

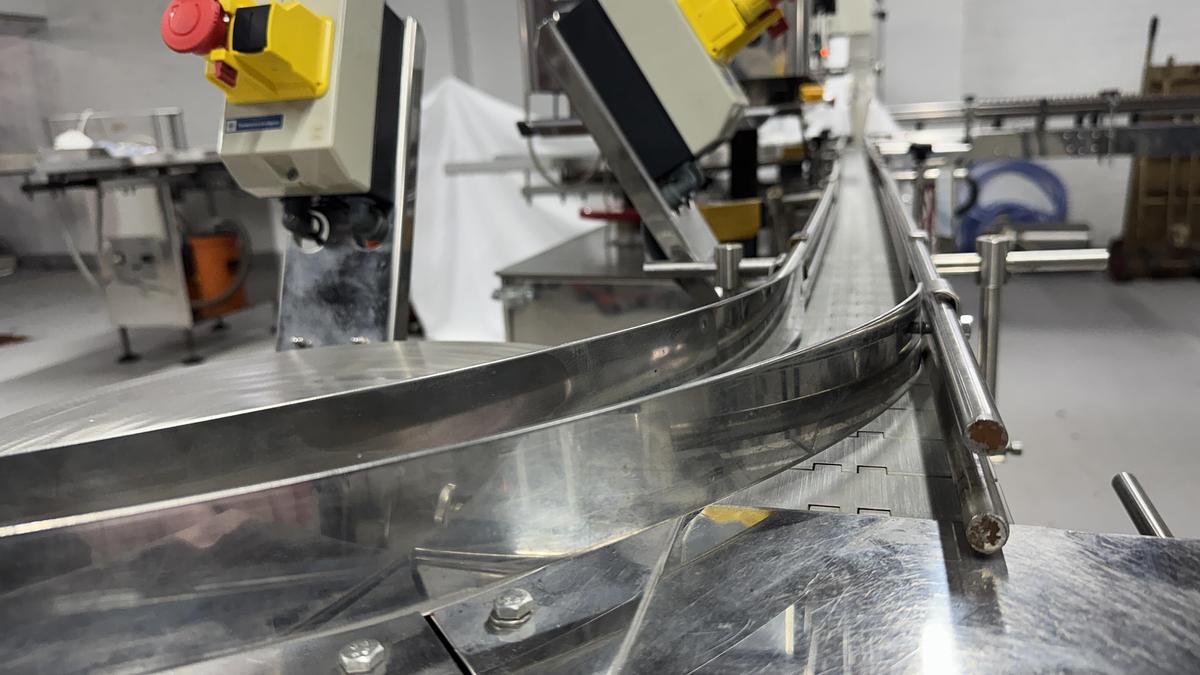

·         Interconnecting conveyors in Stainless-Steel - with 100mm wide slat conveyor and width-changeable guide rails.

Line size:

3950mm (length of out conveyor with square table) - 3250mm (length of main conveyor with TB4 counter over) - 1550mm (length of infeed table (which is 920mm dia.)

W/T: 650kg.
