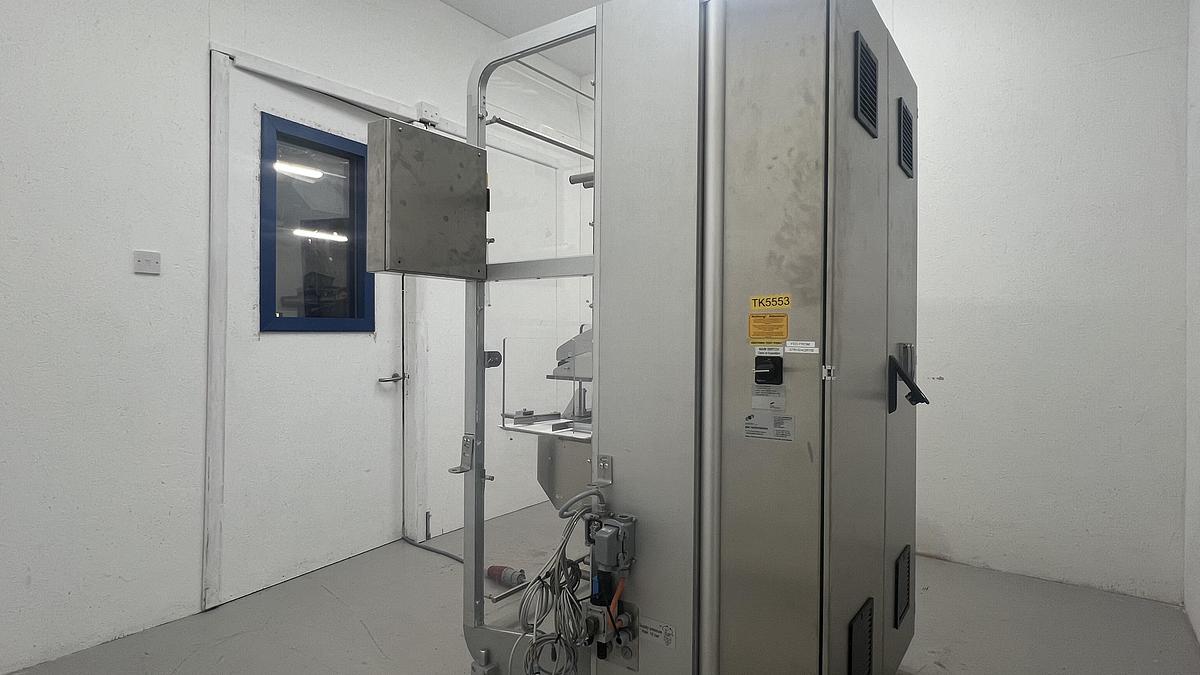

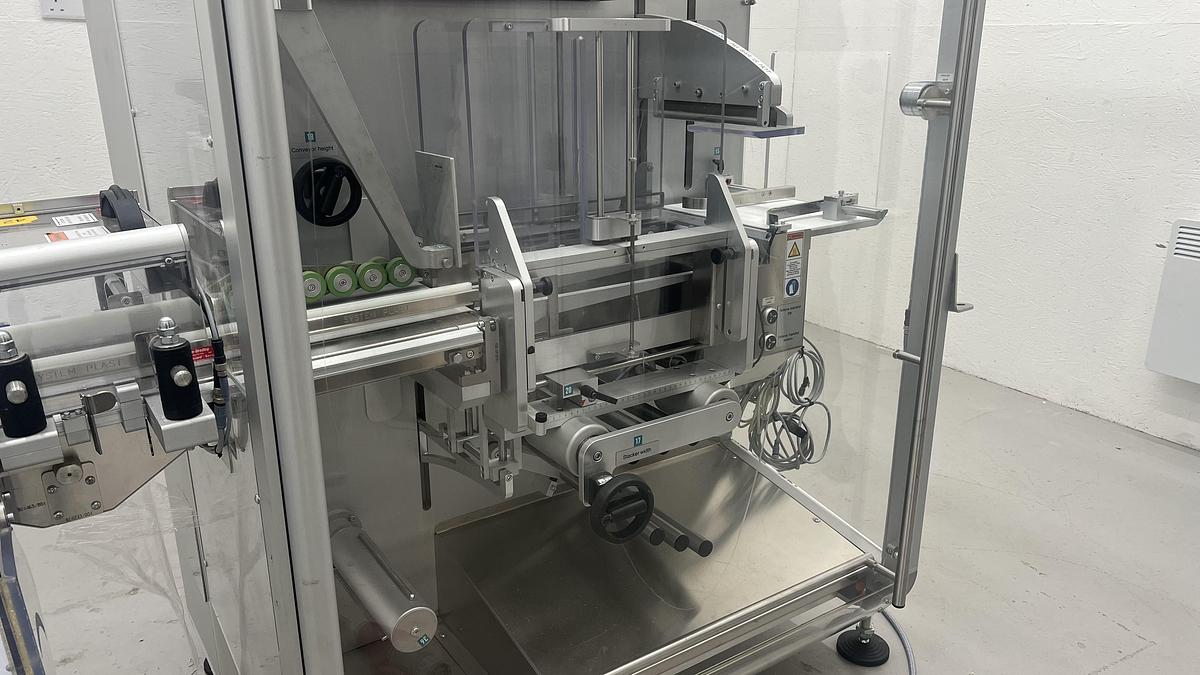

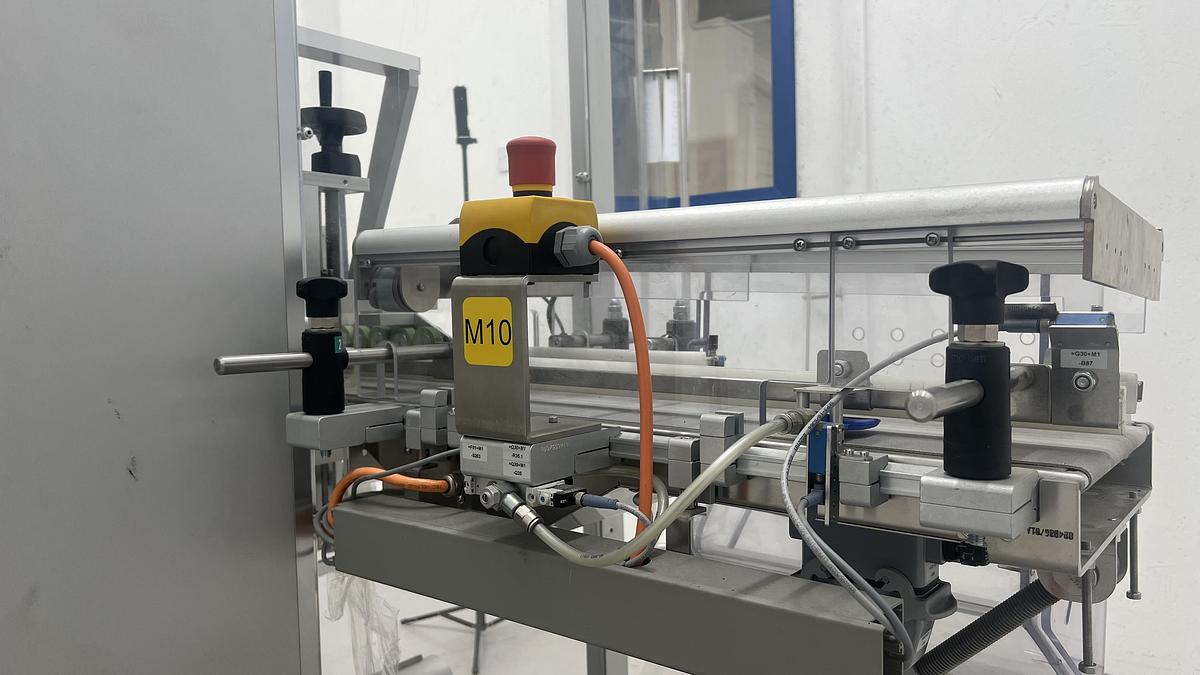

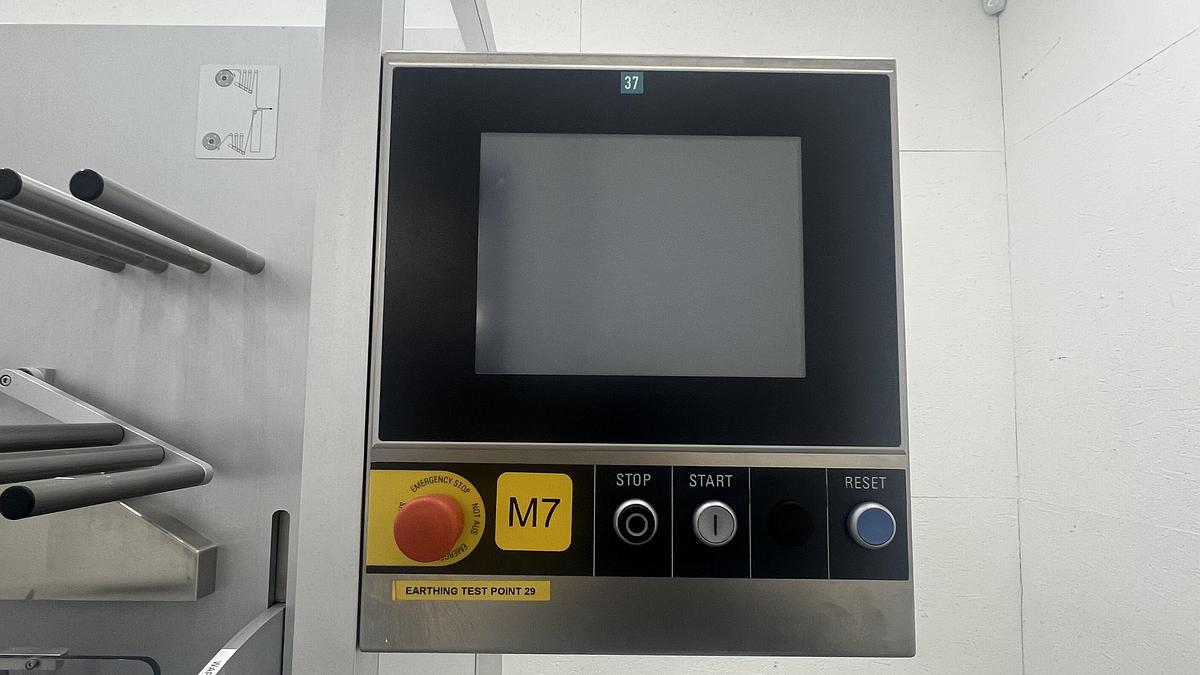

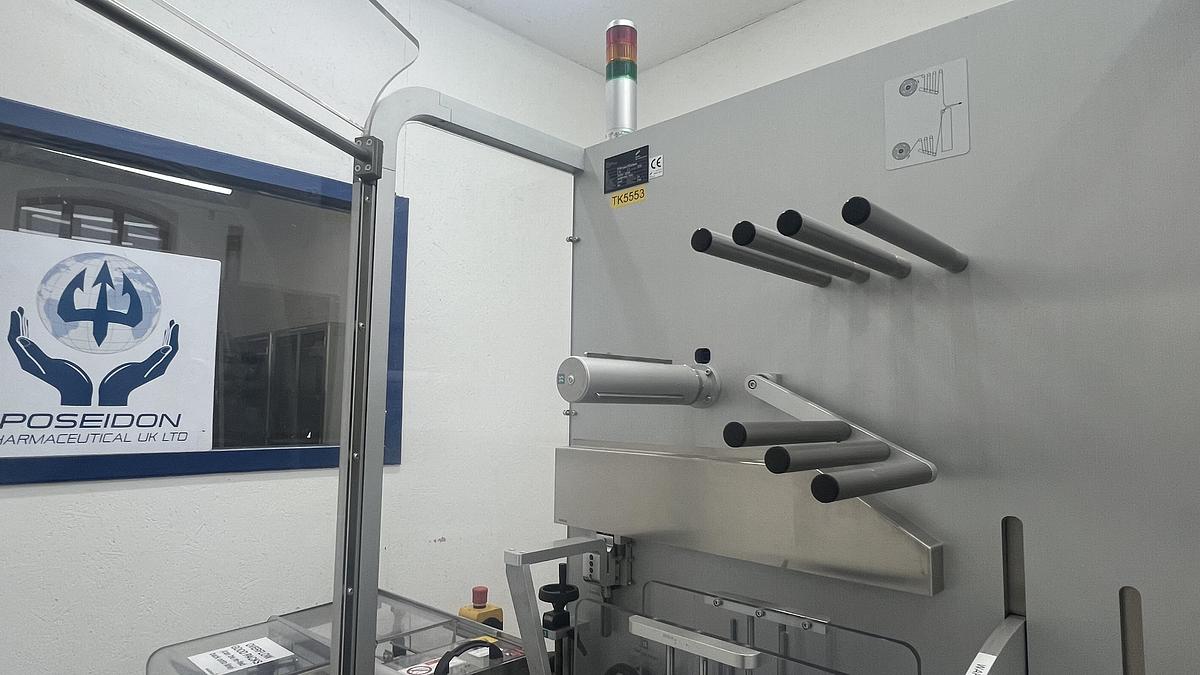

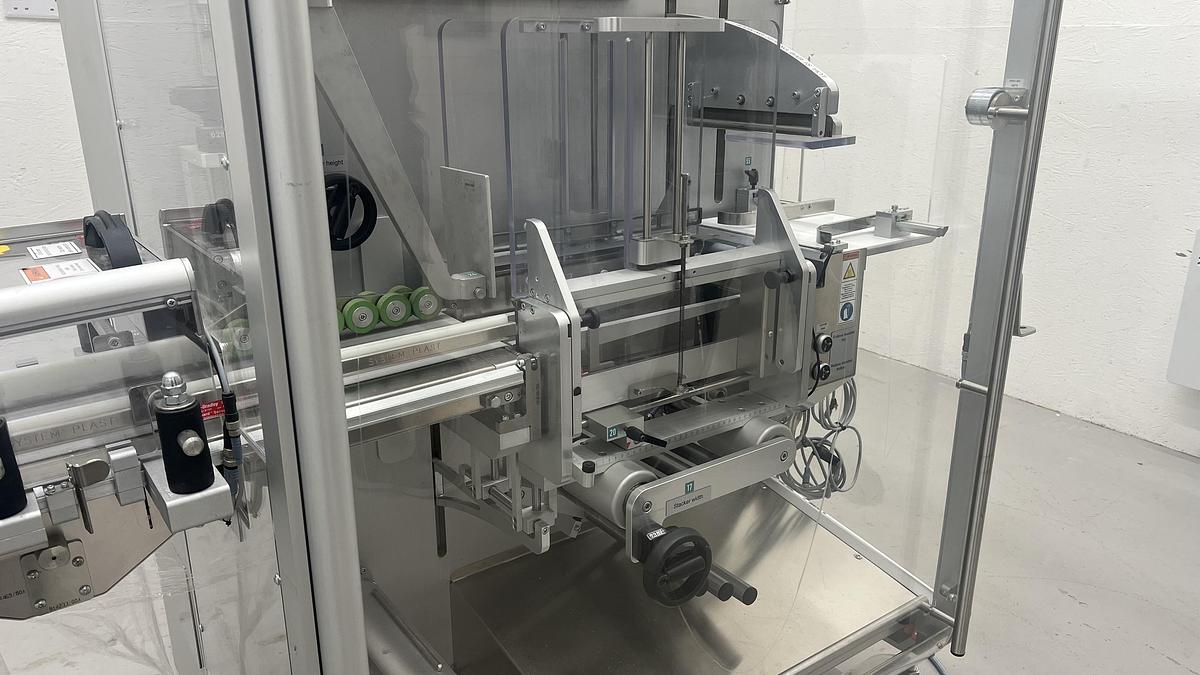

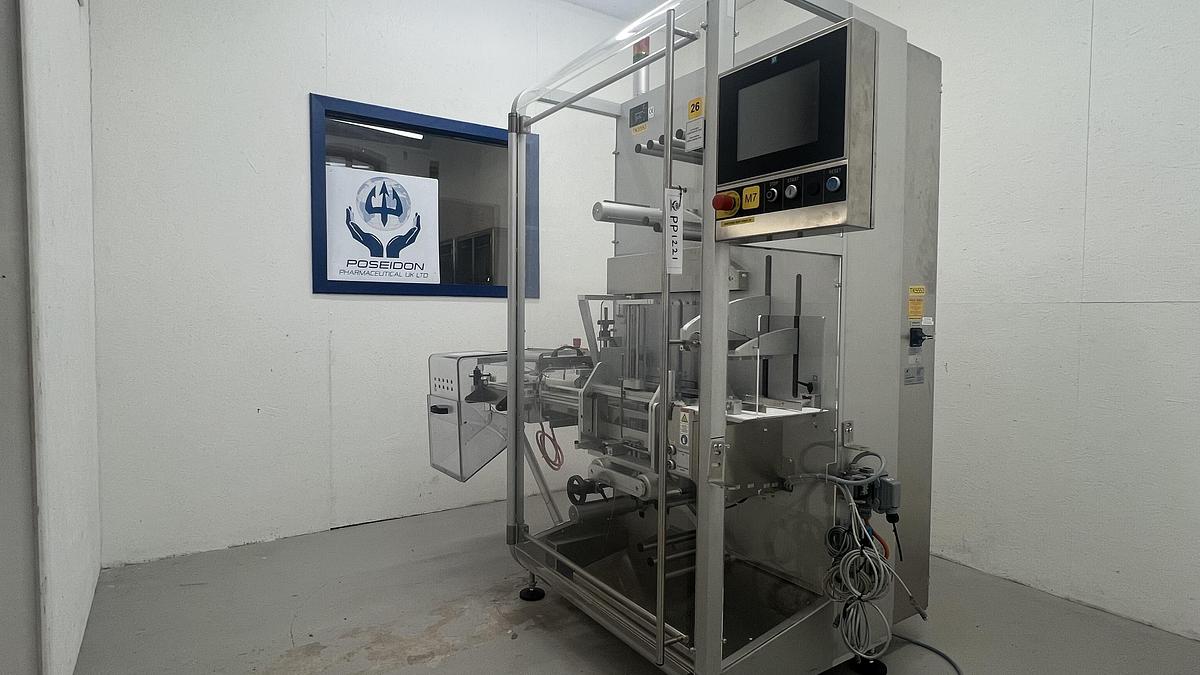

PEWO-Pack 250 automatic bundler and stretch bander

currently being reconditioned

This machine originates from a prominent Pharmaceutical Manufacturing Group in Europe and it is in superb condition with very low working hours.

Year of construction: 2010, model version E10.

Working Description:

High-quality automatic bundler and stretch bander with output up to 60 bundles per minute; Features a fully guarded compact, ergonomic, Pharma grade GMP-compatible cantilever (balcony) design for easy cleaning, accessibility and setup.

Sectors of use: Pharmaceutical, Cosmetics, Food, Dietary, Medical Devices, Contract Manufacturing, Chemical and others.

Technical Information:

Min. Bundle Format (L x W x H): 60 x 30 x 60 mm

Max. Bundle Format (L x W x H): 360 x 180 x 250 mm

Min. Carton Size (A x B x H): 30 x 15 x 60 mm

Max. Carton Size (A x B x H): 150 x 90 x 180 mm

Film Material & Utility Requirements:

·         Film Type: Suitable for PE (polyethylene) foil.

·         Film Width: Min. 50 mm to Max. 250 mm.

·         Film Thickness: 25 μm to 100 μm (0.025 to 0.1 mm).

·         Film Reel Diameter: Maximum 300 mm.

Power Consumption:

2.7 kW to 7 kW depending on configuration.

Operating Pressure:

Standard 5 bar (approx. 72.5 psi); pneumatic connection 1/2".

Machine Dimensions (L x W x H):  2100 x 1150 x 2150 mm (H)

Machine Weight: 1,200kg
